explosion-proof intelligent safety helmet

WB-C03 explosion-proof intelligent safety helmet is mainly used for video communication management on construction sites. It has functions such as video communication, voice intercom, group call, personnel positioning, trajectory playback, electronic fence, one click rescue, photo lighting, hat removal and fall alarm, etc.

Applicable to Zone 1 and Zone 2 of explosive gas environment such as gas stations, oil depots, refineries and oil fields, and is also commonly used in general places.

Explosion-proof mark: Ex ib IIC T4 Gb

Explosion-proof certificate No.:

Application Environment

Widely used in the oil, natural gas energy industry, chemical industry, and emergency fire protection places.

Synchronous recording, accurate transmission and sharing of information during engineering quality and safety inspections

Remote technical support

Remote project management and acceptance

Emergency command and handling

Online video communication

Mobile video conferencing terminal

Product Features

Video call Real time video call, audio and video transmission, video monitoring

Image acquisition  HD video capture, video transmission, local and network dual storage

Voice broadcasting intercom   Support fixed group calling and broadcast information push

SOS rescue alarm   Notify the backend of emergency situations and implement rescue measures

Visual lighting   Lighting in a dimly lit environment for easy construction operations and supplementary lighting for video photography

Positioning trajectory playback    View personnel trajectory records, locate and manage in real-time

Wireless data transmission      Realize real-time remote monitoring and communication in the background under WIFI and 4G networks

Low battery reminder    When the battery is low, there is a voice prompt to charge as soon as possible

Hat off and fall alarm            When you fall or take off your hat, you will be notified to the backstage for inquiries and assistance

Background scheduling management      Control management center, real-time monitoring of construction personnel status and scheduling

Technical Parameters

Software platform     Android9.0

Memory             1G+8G

Camera             16 million autofocus high-definition camera

Location             GPS/Beidou/Glonass/Galileo

Microphone          Dual noise reduction microphone

Expansion card       Support TF card Expanded memory

Bluetooth/WiFi       Bluetooth 5.0/Dual Band WiFi

Card slot            NANO+TF Two out of three card holder

Frequency band       All-net

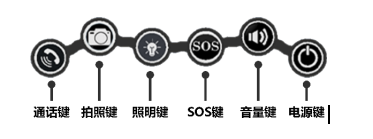

Key functions        Power switch/Intercom/Photo and video recording/Lighting/SOS/Volume adjustment

Indicator light        Dual color working status indicator light

Floodlight           White 1W high-power LED light

Battery             Li-Battery 3.7V/855065MS- 2300mA*2

Overall size         290*220*170mm

Overall weight       550g

Product Color        Red/Yellow/Blue

Explosion-proof type   Intrinsically safe explosion-proof

Explosion-proof mark  Ex ib IIC T4 Gb

Protection level       IP54

The shell            Anti-static enclosure

Remarks:

The device uses integrated chips, and users should not arbitrarily change the circuit.

Important tips for use in hazardous areas:

The instrument can be used for explosion-proof gas zones 1 and 2

The ambient temperature in hazardous areas shall not exceed -10 ℃ to 40 ℃

Explosion-proof mark: Ex ib IIC T4 Gb

Static electricity hazard, it is necessary to wipe the instrument with a wrung dry anti-static damp cloth
